CloudOps

作品集演示 · 云厂商 DevOps

CloudOps

GCP 优先的云厂商 DevOps 配置包：Cloud Run + Cloud Build + IAM + Secret Manager + Monitoring 即代码；AWS 为次要平行示例；全部离线校验；未部署到任何云账号；Thistle Analytics 为虚构。

配置真实且经过离线校验；未部署到任何云账号。页面上的通过与失败计数来自 results/checks.json，标注为构建时记录。

构建时记录 recorded build-time · 2026-10-07T09:22:56+08:00

架构

架构图：GitHub 与 Cloud Build 到 Artifact Registry 和 Cloud Run，旁边是 Secret Manager、IAM 和 Monitoring。AWS 次要路径在虚线框里。未部署。
配置真实且经过离线校验；未部署到任何云账号。AWS 路径在虚线框中，标记为次要。

和 SkyForge / TerraShelf / KubeHarbor 的区别

维度SkyForgeTerraShelfKubeHarborCloudOps
主叙事单一产品的 AWS Terraform 参考架构可复用 AWS Terraform 模块库厂商无关的 Kubernetes 清单GCP 优先的云厂商 DevOps。AWS 只是更薄的平行示例
计算EC2 Docker 或 ECS Fargate模块里的 AWS 资源Helm 与 KustomizeCloud Run。不写 VPC 或 ECS 模块，不写通用 Helm chart
流水线Terraform fmt / validate / tflint模块 matrixhelm lint / kubeconformCloud Build YAML 与 GitHub 到 GCP 的 Workload Identity Federation
密钥与权限SSM Parameter StoreSecrets ManagerexistingSecretSecret Manager 与最小权限 IAM，用 conftest 离线断言
监控CloudWatchcloudwatch-alarms 模块ServiceMonitorCloud Monitoring 告警策略即代码。AWS CloudWatch 只是次要片段

GCP 流水线

步骤名来自 checks.json 里记录的 cloudbuild.yaml。链接打开渲染后的文件。

Cloud Build step
lint
Cloud Build step
test
Cloud Build step
push

IAM 最小权限

服务账号绑定来自 checks.json。Rego 正例退出码 0，失败数 0。负向夹具按预期失败的文件数 5。

用途账号角色资源成员
deploycloud-build-saroles/run.adminprojects/thistle-analytics-demo/locations/asia-east1/services/insights-apiserviceAccount:cloud-build-sa@thistle-analytics-demo.iam.gserviceaccount.com
deploycloud-build-saroles/artifactregistry.writerprojects/thistle-analytics-demo/locations/asia-east1/repositories/appsserviceAccount:cloud-build-sa@thistle-analytics-demo.iam.gserviceaccount.com
deploycloud-build-saroles/iam.serviceAccountUserprojects/thistle-analytics-demo/serviceAccounts/insights-api-sa@thistle-analytics-demo.iam.gserviceaccount.comserviceAccount:cloud-build-sa@thistle-analytics-demo.iam.gserviceaccount.com
deploygithub-deploy-saroles/run.adminprojects/thistle-analytics-demo/locations/asia-east1/services/insights-apiserviceAccount:github-deploy-sa@thistle-analytics-demo.iam.gserviceaccount.com
deploygithub-deploy-saroles/artifactregistry.writerprojects/thistle-analytics-demo/locations/asia-east1/repositories/appsserviceAccount:github-deploy-sa@thistle-analytics-demo.iam.gserviceaccount.com
deploygithub-deploy-saroles/iam.serviceAccountUserprojects/thistle-analytics-demo/serviceAccounts/insights-api-sa@thistle-analytics-demo.iam.gserviceaccount.comserviceAccount:github-deploy-sa@thistle-analytics-demo.iam.gserviceaccount.com
wifgithub-deploy-saroles/iam.workloadIdentityUserprojects/thistle-analytics-demo/serviceAccounts/github-deploy-sa@thistle-analytics-demo.iam.gserviceaccount.comprincipalSet://iam.googleapis.com/projects/000000000000/locations/global/workloadIdentityPools/github-pool/attribute.repository/example.invalid/thistle-analytics/insights-api
runtimeinsights-api-saroles/secretmanager.secretAccessorprojects/thistle-analytics-demo/secrets/insights-api-signing-keyserviceAccount:insights-api-sa@thistle-analytics-demo.iam.gserviceaccount.com
runtimeinsights-api-saroles/logging.logWriterprojects/thistle-analytics-demoserviceAccount:insights-api-sa@thistle-analytics-demo.iam.gserviceaccount.com
runtimeinsights-api-saroles/cloudtrace.agentprojects/thistle-analytics-demoserviceAccount:insights-api-sa@thistle-analytics-demo.iam.gserviceaccount.com
invokerinternal-callerroles/run.invokerprojects/thistle-analytics-demo/locations/asia-east1/services/insights-apiserviceAccount:internal-caller@thistle-analytics-demo.iam.gserviceaccount.com

Monitoring 目录

策略数 6。Schema 退出码 0。passed 列是 schema 校验结果，不是线上告警状态。

策略严重级别条件摘要schema
insights-api instance and concurrency anomalyWARNINGBillable instance count at the maxScale cap, or concurrent requests above the container concurrency.true
insights-api application error log spikeERRORLog-based metric insights_api_app_errors increased above 20 lines in 5 minutes.true
insights-api Cloud Run 5xx ratioCRITICALCloud Run 5xx responses above 5 percent of the request rate for 5 minutes.true
insights-api Cloud Run p95 latencyWARNINGRequest latency p95 above 800 milliseconds for 5 minutes.true
insights-api uptime check failedCRITICALUptime check against insights-api.thistle.example /healthz failed.true
insights-api WIF or deploy SA auth failureERRORLog match for Workload Identity Federation or github-deploy-sa authentication failures.true

AWS 次要 secondary

Lambda、API Gateway HTTP API、CodeBuild 和 CloudWatch 是平行示例。GCP 才是主叙事。打开次要页。

检查结果

工具版本和退出码都来自同一次 make check。时区是 Asia/Shanghai。

terraform
Terraform v1.9.8
tflint
TFLint version 0.55.1
checkov
3.2.449
conftest
Conftest: 0.71.1
actionlint
1.7.12
shellcheck
version: 0.11.0
yamllint
yamllint 1.35.1
pytest
pytest 8.3.5
ruff
ruff 0.11.12
schema
1
gcp credentials used
false
aws credentials used
false
yamllint exit
0
actionlint exit
0
ruff exit
0
terraform fmt exit
0
terraform validate exit
0
terraform test exit
0
terraform test passed
1
terraform test failed
0
tflint exit
0
checkov exit
0
checkov high failed
0
checkov failed
0
pytest exit
0
pytest passed
24
pytest failed
0
app coverage percent
100.0

本地页面截图

下面两张图是本静态页在构建机上的无头浏览器渲染。不是 GCP Console，也不是 AWS Console。

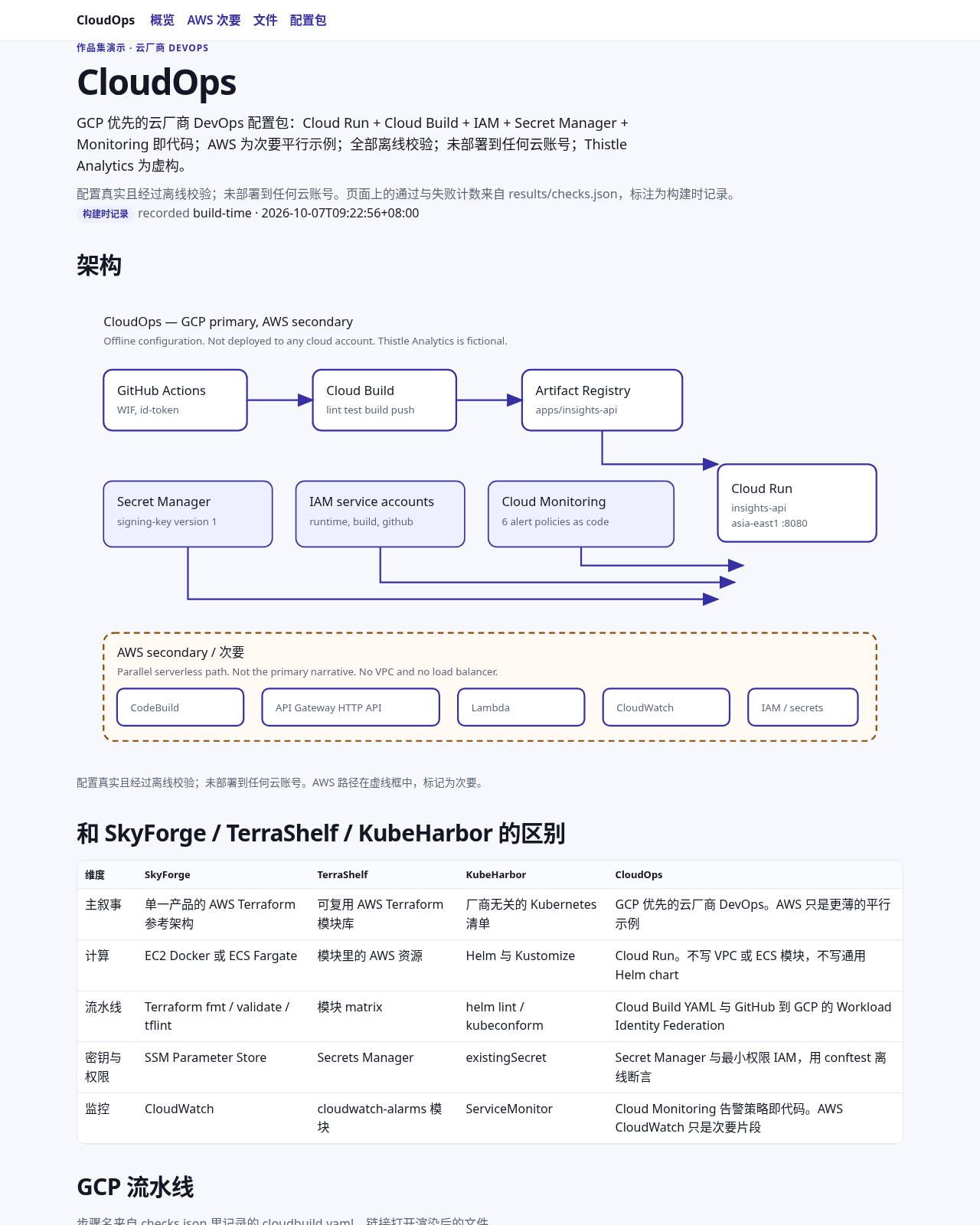

Desktop render of this static CloudOps page. Not a cloud console. Not deployed.
Desktop render of this static page. Not a cloud console. Not deployed.

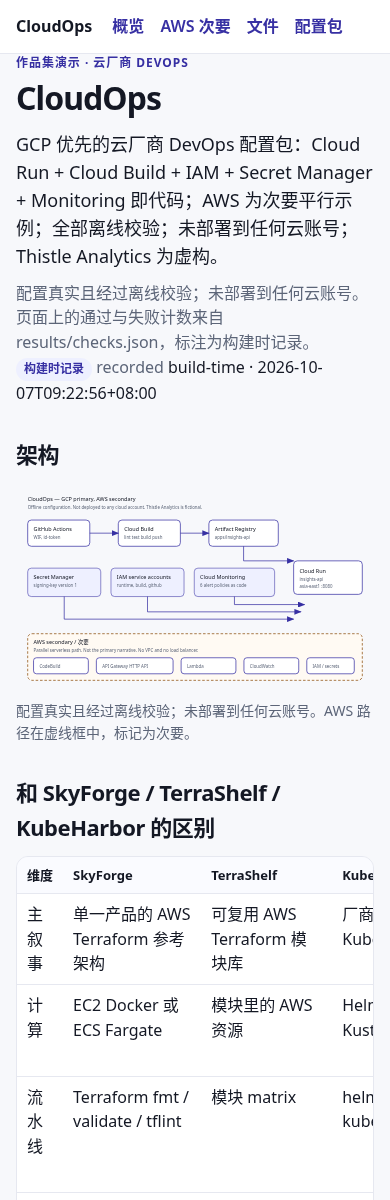

Mobile render of this static CloudOps page. Not a cloud console. Not deployed.
Mobile render of this static page. Not a cloud console. Not deployed.

下载

cloudops-config-0.1.0.tar.gz 含 gcp/、aws/、policies/、fixtures/。不含工具二进制，不含密钥值。
